JL 320 Type A ATV

4 × 4 all-terrain vehicle, handlebar all-terrain vehicle, four-wheeled motorcycle;

Elegant and elegant shape, streamlined body, with "fashion aesthetics"

It adopts high-efficiency and energy-saving engine with strong power, integrated CVT stepless speed change, simple operation and sensitive response.

Enjoy driving pleasure, strong stability at high speed, high trafficability in complex terrain, four-wheel independent double-A-arm long-stroke suspension.Two-wheel drive/four-wheel drive fast conversion, low center of gravity design, single pedal control, take you over any obstacle.

Forest areas and roadways are interspersed with worry-free vehicles, which are compact and sensitive to steering, so that your shuttle ability is stronger and the vehicle is more stable.

The front and rear modular storage platforms are convenient to load and adaptable to modification, and can be used in more scenes.

The JL320ATV is the perfect combination of power and agility. Its sturdy structure supports heavy loads while maintaining flexible maneuverability. Its lightweight body and high-end design give it a commanding presence, allowing it to conquer any terrain, even the rougher it gets, the more effortless it becomes.
The 320cc four-stroke, liquid-cooled engine delivers powerful power. Equipped with an electronic fuel injection system, it's responsive and fuel-efficient. The CVT offers multiple gears to adapt to various road conditions.

The vehicle suspension adopts double A-arms, which can precisely control the wheel positioning parameters, improve the handling stability, enhance the tire grip, adapt to complex road conditions, and take into account the balance between comfort and sportiness. The structure is strong and can adapt to high-load scenarios.
The rear features a large single caliper pump with a perforated disc that helps improve braking efficiency, reduce heat and prevent brake fade, making the car stop more precisely.
The parking brake lever adopts a unique high-end design that fits tightly with the handlebar and is installed on the left side of the handlebar for easy use, combining functionality and aesthetics.

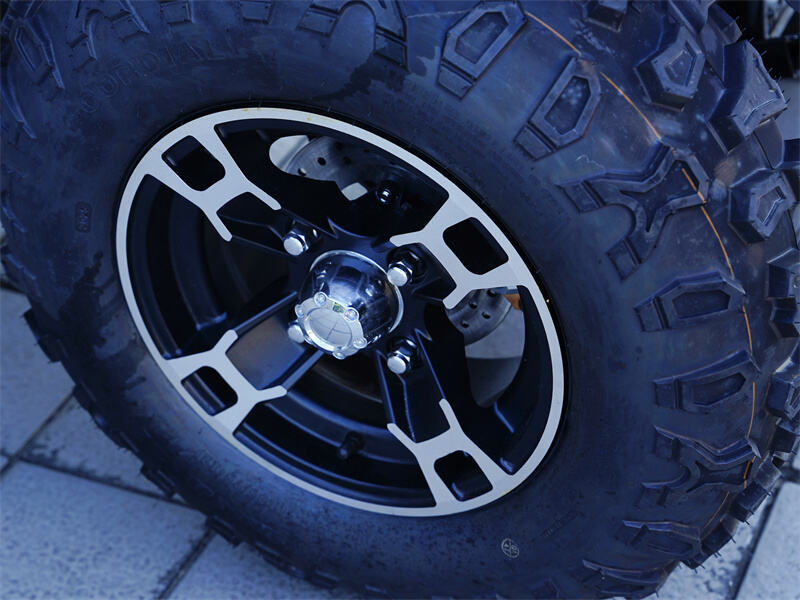

High-quality tires help reduce the weight of the car and help it move and change direction more nimbly.

The gear lever is designed to be in the "up gear" position and is connected to the vehicle body to maximize ease of use and safety.

Through CAE analysis, the bumper has super high protection for important parts of the vehicle body

mutil_pix

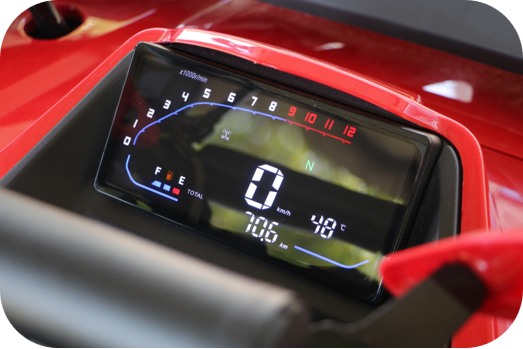

The high-resolution panel ensures sharp images even in strong sunlight. It displays key data such as speed, fuel level, and four-wheel drive mode in real time. The touchscreen is sensitive and adaptable to bumpy roads, making control information clear at a glance.

The high-power LED light source provides a strong and long-range beam, capable of penetrating dust and fog. The light cluster layout conforms to the body lines, balancing illumination range and protection. It is stable and durable under bumpy road conditions, and provides clear and worry-free off-road vision at night.

Description

Place of Origin:	Chongqing
Brand Name:	JIALING
Model Number:	JL320A
Certification:	EU T3B
Minimum Order Quantity:	1
Delivery Time:	60 days
Payment Terms:	30% advance payment and 70% final payment for delivery.
Supply Ability:	500 vehicles/month

Applications

It is mainly used for small-scale agricultural transportation, patrol and security, emergency rescue, field exploration, forest crossing, tourism operation leasing and other tasks.It is an indispensable tool for urban roadways, scenic spots, mountains, jungles, beaches, deserts, snow and other complex areas.It can be widely used in agriculture, forestry, animal husbandry, outdoor entertainment and emergency rescue police patrol and other special tasks.

Specifications

Basic parameters	L × W × H: 2040mm × 1100mm × 1270mm;
	Vehicle wheelbase: 1240 mm;
	Minimum ground clearance: 250 mm;
	Curb weight: 305 kg;
	Maximum bearing mass: 180 kg;
	Vehicle fuel tank capacity: 14 L;
	Maximum speed: 80km/H.
Dynamic parameters	Engine type: single cylinder, four-stroke, SOHC, water-cooled, CVT;
	Displacement: 287.2 CC;
	Bore × stroke: 75 mm × 65 mm;
	Maximum horsepower/corresponding speed: 23 HP/6800 rpm;
	Maximum torque/corresponding speed: 28 N · m/5500rpm;
	Compression ratio: 11:1 Fuel supply mode: EFI/carburetor
	Ignition control mode: CDI;
	Transmission type: CVT continuously variable transmission;
Chassis parameters	Driving mode: two-wheel drive/four-wheel drive electronic control conversion;
	Braking mode: four-wheel rim disc brake + rear wheel rim manual parking;
	Suspension type: double wishbone independent suspension;
	Shock absorber type: variable stiffness coil spring + oil damping type;
	Rim specification: front 14 × 6, rear 14 × 8;
	Tire specification: front 27 × 9-8PR-AT, rear 27 × 11-8PR-AT.
Optional configuration	Optional configuration: electric winch, EFI, aluminum alloy rim;

Competitive Advantage

Relying on years of R & D experience and in-depth contact with customers in special industries, we have a deep understanding of all-terrain vehicles and adopt a high-standard R & D and production system.? Excellent performance, reliable and durable.
