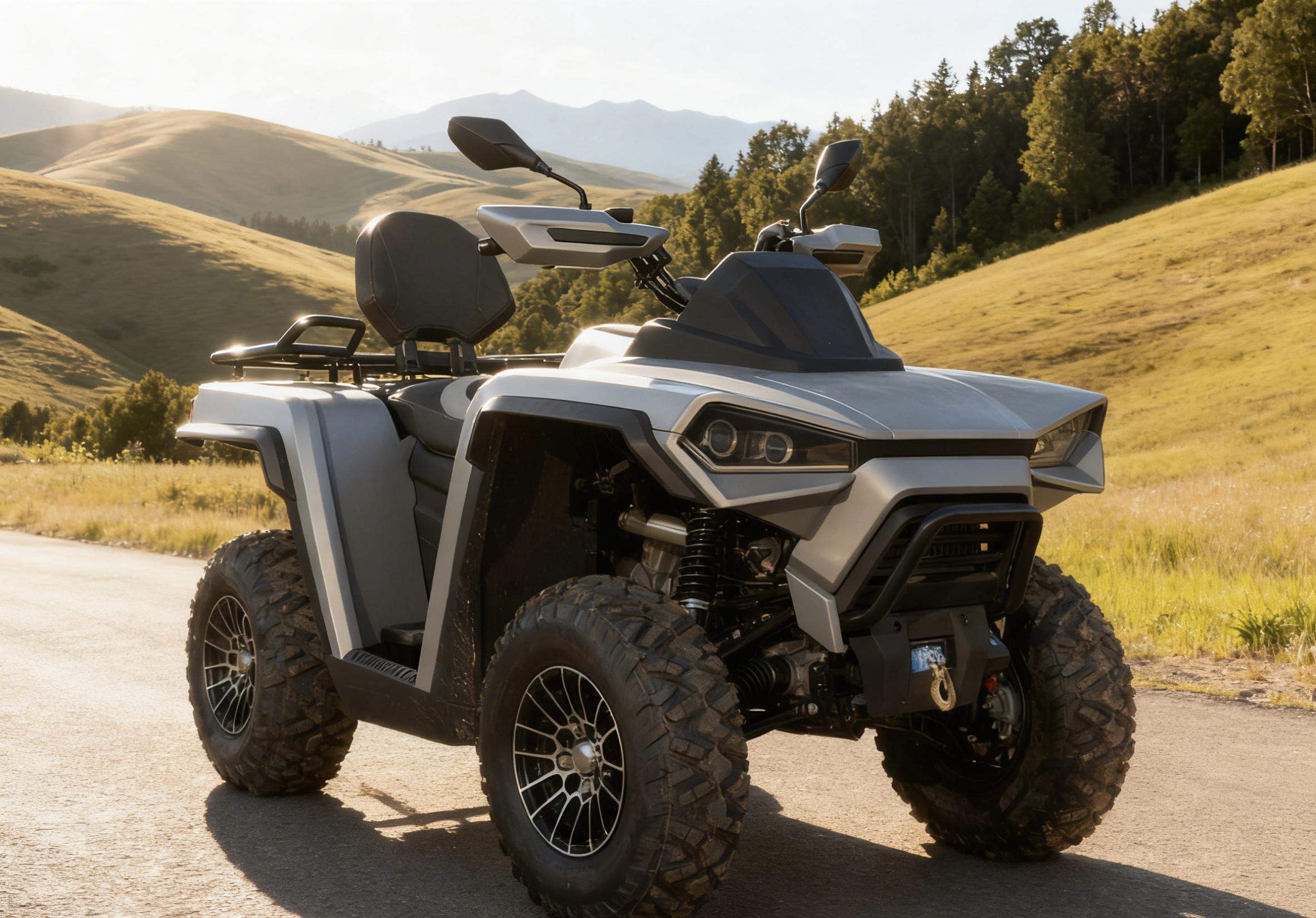

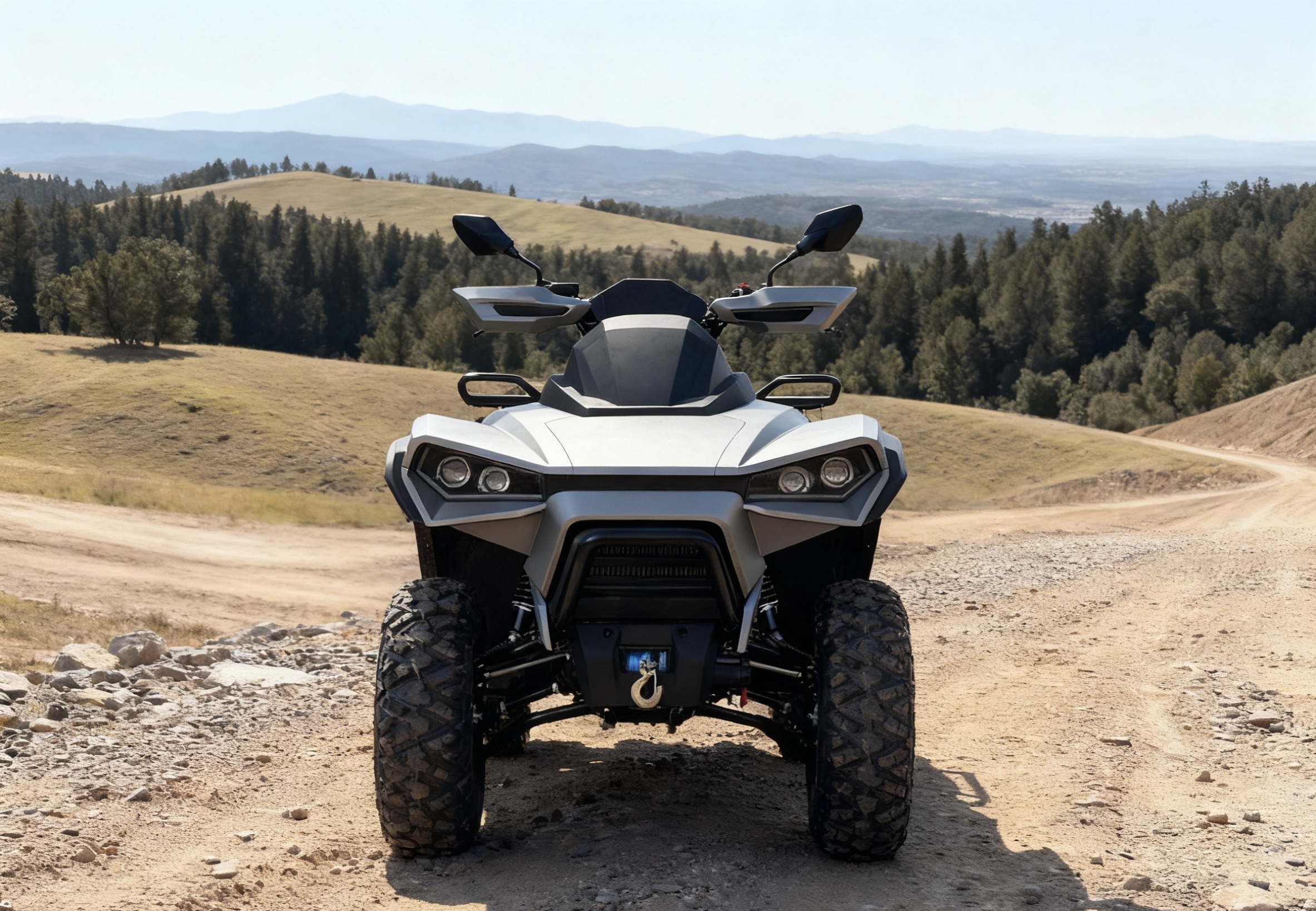

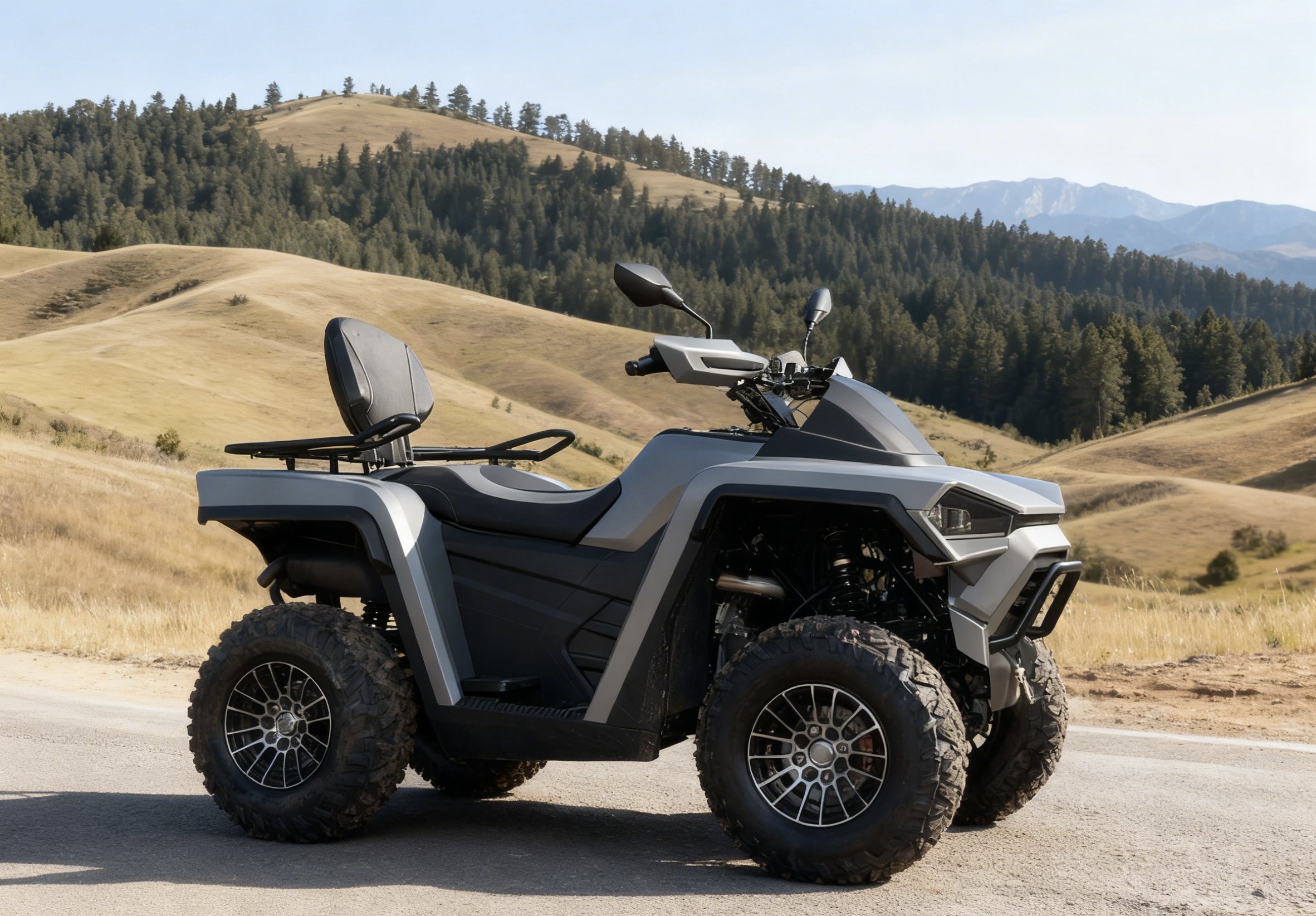

JL 620 Type A ATV

Parameter Category

Parameter Details

Electric ATV

JL320A ATV

JL620A ATV

Basic Parameters

L×W×H(mm)

2040×1100×1270

2040×1100×1270

2235×1180×1390

Wheelbase(mm)

1240

1240

1480±20

Ground Clearance

(mm)

250

250

270

Curb Weight(kg)

355

305

400

Max Load(kg)

130

180

230

Energy /Fuel Tank Related

Battery capacity:

96V140AH×2;

waterproof grade IP67

Vehicle fuel tank capacity:

14L

Vehicle fuel tank capacity:18L

Maximum Speed

(km/h)

80

80

80

Range(km)

150

250

300

Power Parameters

Power type

Dual mid-mounted

motors:5kW front,11kW

rear

Single-cylinder,four-stroke,

SOHC,

water-cooled engine

Single-cylinder,water-

cooled,four-stroke,

SOHC,four-valve engine

Displacement

(cc)/Specifications

/

287.2

580

Cylinder diameter×

stroke(mm)

/

75×65

91×89.2

Maximum

horsepower/  corresponding

speed(HP/rpm)

/

23/6800

45/6500

Maximum torque /

corresponding

speed

(N ·m/rpm)

/

28/5500

51/6000

Compression ratio

/

11:1

10.68:1

Fuel supply method

/

EFI/Carburetor

Electronic fuel injection

Ignition control method

/

CDI

CDI

Transmission type

/

CVT(Continuously Variable

Transmission)

CVT(Continuously

Variable Transmission)

Chassis parameters

Drive type

Electronically switchable 2WD/4WD

Electronically switchable 2WD/4WD

Electronically switchable 2WD/4WD

Braking type

Four-wheel disc brakes+

rear-wheel manual

parking brake

Four-wheel disc brakes+

rear wheel central manual

parking

Four-wheel disc brakes

+rear-wheel manual

parking brake

Suspension type

Double wishbone

independent suspension

Double wishbone

independent suspension

Double wishbone independent

suspension

Suspension travel

(mm)

Shock absorber

type

Variable-rate coil springs+oil-damped

Variable-rate coil springs+ oil-damped

Variable-rate coil springs+oil-damped

Rim size

Front 12×6,Rear 12×8

Front 12×6,Rear 12×8

Front 12×6,Rear 12×7.5

Tyre size

Front 24×8-12 Rear 24×8-12

Front 24×8-12 Rear 24×8-12

Front 25×8-8PR-AT Rear 25×10-8PR-AT

Available

Configurations

(Wireframe

depicted in basic

configuration)

Electric winch,electronic

fuel injection,

Aluminum alloy rims

Electric winch,electronic

fuel injection,

Aluminum alloy rims

Electric winch,

aluminum alloy rims,

electronic power

steering

Available Colors

Red,black,blue

Red,black,blue

Red,black,blue

Packaging

Dimensions/Weight

1990×1160×860(mm)

410(KG)

1990×1160×860(mm)

360(KG)

2300×1300×860(mm)

470(KG)
