JL1500U amphibious vehicle, China JL1500U amphibious vehicle Manufacturers, Suppliers, Factory - Chongqing Jialing All-terrain Vehicle Co,. Ltd.

Place of Origin:	Chongqing
Brand Name:	JIALING
Model Number:	JL1500U
Minimum Order Quantity:	1
Delivery Time:	60 days
Payment Terms:	30% advance payment and 70% final payment for delivery.
Supply Ability:	500 vehicles/month

Description

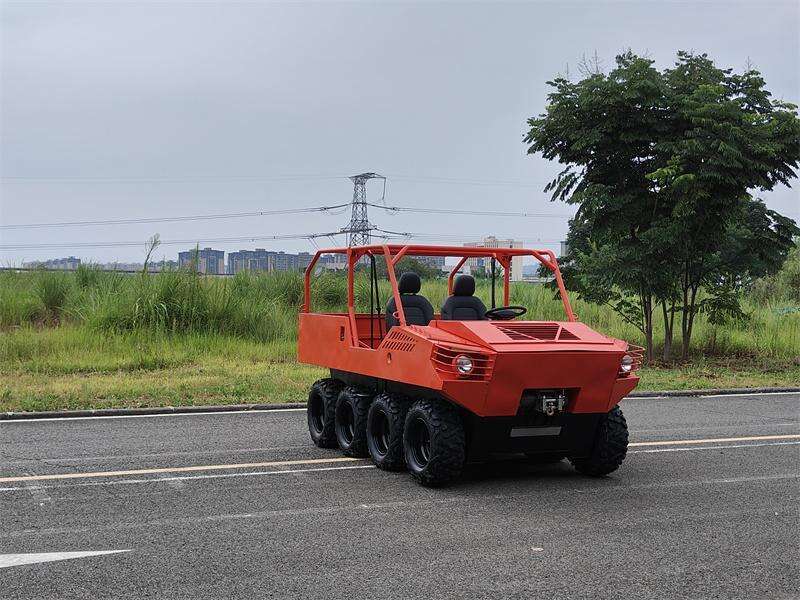

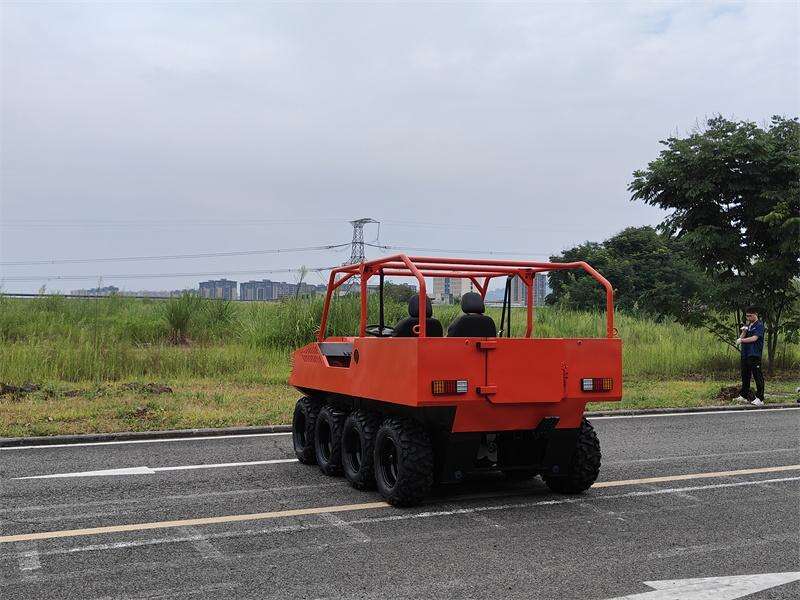

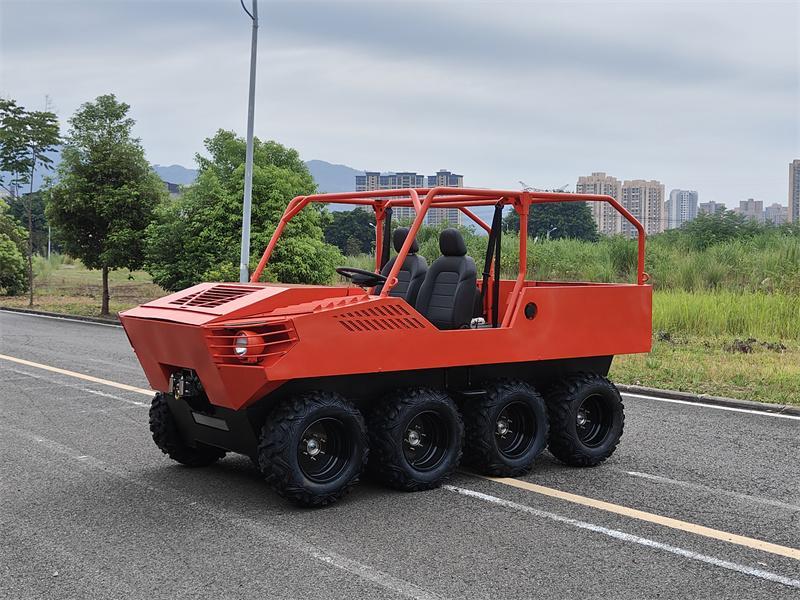

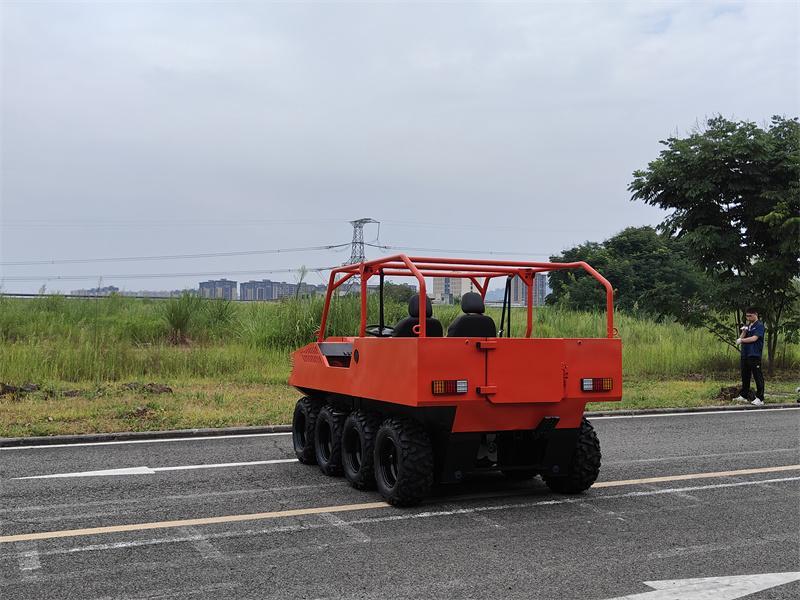

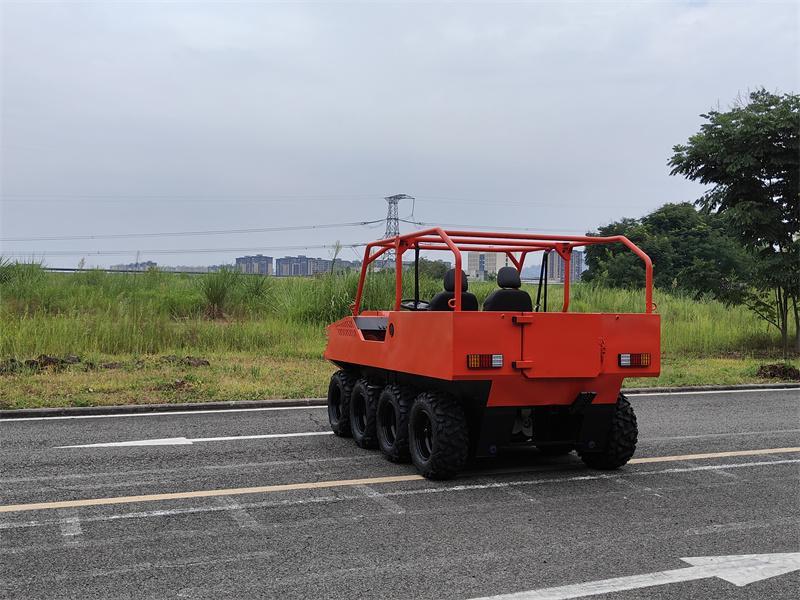

JL 1500UH amphibious 8 × 8 all-terrain vehicle adopts 8 × 8 wheeled configuration and wire-controlled chassis technology architecture.It has the functions of manned driving and remote control driving expansion, and the power system adopts the gasoline extended-range generator in front.It has the ability of supplying 20 kw power for external operation, and the transmission system adopts three-in-one driving motor + chain sprocket.Water walking adopts built-in electric propeller propulsion, and the vehicle body adopts high-strength tube plate combined with load-bearing design.The control mode adopts steering wheel differential steering, and the braking system adopts vacuum power and manual parking integrated disc caliper braking.The front row seats adopt the wrapped integrated front and rear adjustable seats, and the rear row adopts the fixed seats arranged in opposite directions.

Applications

JL1500UH amphibious 8 × 8 all-terrain vehicle is mainly used in flood, earthquake and geological disasters when the road is blocked and the conventional equipment can not pass.It ensures the transportation of materials, the transfer of the masses, the passage of rescue workers and the use of mobile power stations in the field.It is suitable for use in complex geographical conditions such as mountains, jungles, wetlands, swamps, mud, beaches, deserts, snowfields, lakes and so on.It can quickly pass through various special terrains.It has the characteristics of central steering function, good trafficability, strong carrying capacity, simple control, high maneuverability and strong external power supply capacity.It can meet the needs of tourism and entertainment, agricultural operations, field construction operations and foreign trade exports.

Specifications

Basic parameters	Length × width × height: 3600 mm × 1800 mm × 1950 mm; wheelbase: 762 mm × 3; minimum ground clearance: 250 mm; curb weight: 1650 kg; maximum load mass: 1000 kg (land)/800 kg (water); Fuel tank capacity: 40L; maximum speed: 60 km/H.
Dynamic parameters	Engine type: 1499CC in-line four-cylinder, four-stroke, water-cooled, DOHC, IVVT, low pressure EGR; displacement: 1499CC; cylinder bore × stroke: 91mm × 74mm × 2; maximum horsepower/corresponding speed: 87HP/5000rpm; Maximum torque/corresponding speed: 125N · m/3600 ~ 4400rpm; fuel supply mode: electronic fuel injection; ignition control mode: EFI; transmission type: electronic knob shift P + R + C + D + W (W is the water mode);
Chassis parameters	Drive mode: 8 × 8 motor drive; brake mode: hydraulic disc caliper brake, pedal brake; rim specification: 14-inch steel rim; tire specification: AT27 × 11-14 all-terrain tire.
Optional configuration	Optional configuration: soft top, hard top, fence-type tarpaulin, 220V20kW external discharge module, rubber track, windshield, wiper, rearview mirror, rear trailer hook, air conditioner, buoyancy tank, warning light, searchlight, trailer, etc.; optional vehicle color: sand mold yellow, bay blue, garnet red, maze green.

Competitive Advantage

a)Extended-range hybrid, powerful

JL1500UH amphibious 8 × 8 all-terrain vehicle is equipped with 65kW extended-range hybrid power, high-rate ternary lithium battery energy supplement, and high-performance three-motor drive.Fast response and strong power.

b)8-wheel drive, amphibious, all-terrain passing ability.

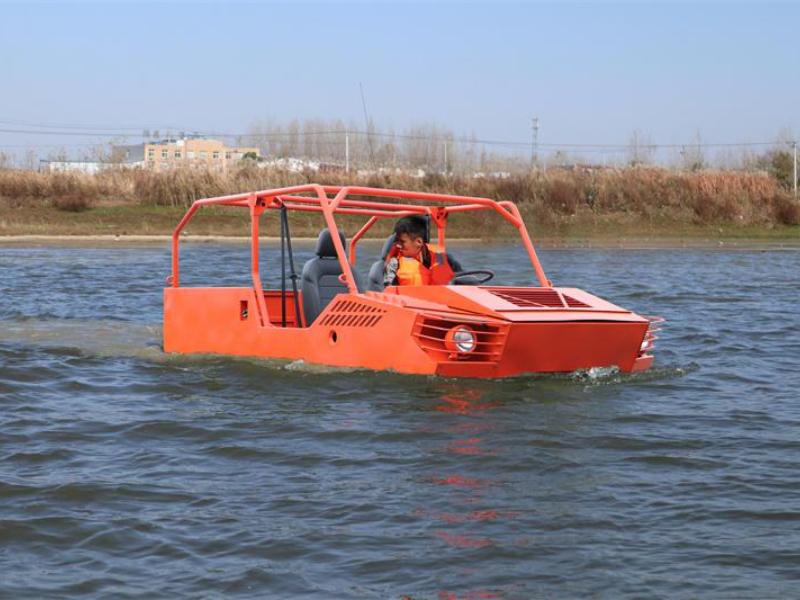

The whole vehicle is driven by two motors directly connected to eight wheels on land, and the propeller is directly driven by a single motor on water, which has amphibious capability.It can quickly pass through complex areas such as mountains, jungles, mud, beaches, deserts, snow, lakes and so on.The passing ability is strong.

c)It is flexible and easy to operate.

The vehicle adopts motor differential steering on land, the steering passing demand is small, and the vehicle adopts electronic steering engine steering on land.Both land and water are controlled by steering wheel, which is convenient to use.The stepless variable speed driving of the motor does not need to change gears under various road conditions, and the control is convenient and flexible.

d)It has large space and strong carrying capacity.

The middle part of the vehicle is the passenger compartment, and the tail part is the large platform manned compartment and cargo compartment, which has strong carrying capacity and can carry 1 ton of load with full load.The cargo box can hold 2.5 cubic meters of cargo, which has the characteristics of large space and strong carrying capacity.

e)Solid body, high safety, excellent comfort

The car body is made of high-strength all-metal and equipped with high-strength anti-rolling device.At the same time, the passenger seat adopts a wide wrapped adjustable seat, which can meet the man-machine requirements of different groups of people.It is equipped with three-point safety protection belt to ensure personnel safety, and optional air conditioning system can be installed to improve personnel comfort.

f)Rich configuration and strong expandability

JL 1500UH amphibious 8 × 8 all-terrain vehicle can be equipped with electric winch, towing hook, anti-roll frame, soft top, hard top, tarpaulin coat and trailer.Remote control driving module, rubber track, windshield, wiper, rearview mirror, air conditioner, buoyancy tank, warning light, searchlight, BeidouBit and 4G communication modules provide users with a variety of choices.It can be equipped with 220V20kW external discharge module and remote control driving module, which makes the vehicle have strong function expansion ability.
