Place of Origin: |
Chongqing |
Brand Name: |
JIALING |
Model Number: |
JL1000U |
Certification: |
EU T3B |
Minimum Order Quantity: |
1 |
Delivery Time: |
60 days |
Payment Terms: |
30% advance payment and 70% final payment for delivery. |
Supply Ability: |
500 vehicles/month |

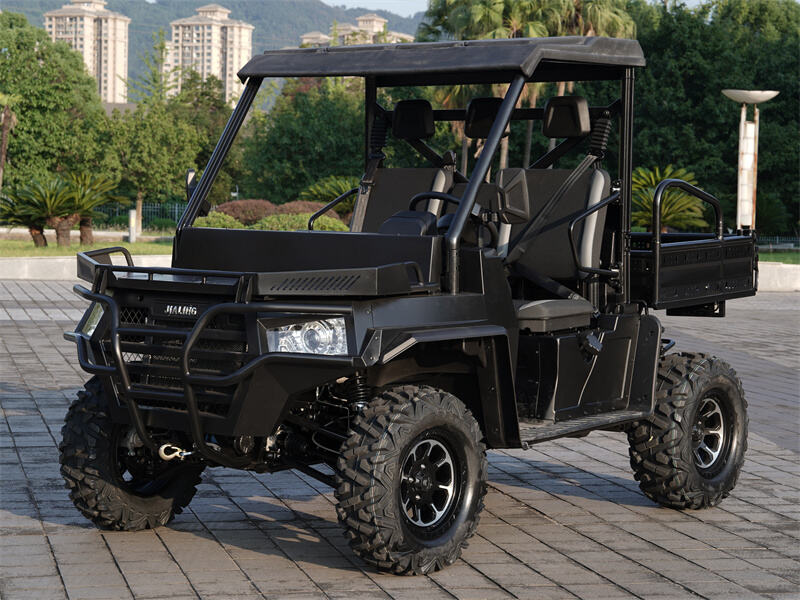

It has the ability to move rapidly in special geographical conditions such as mountains, jungles, beaches, deserts and snowfields when carrying 650kg of equipment and materials. The vehicle is controlled by a steering wheel, equipped with an original high-torque continuously variable transmission system, an independent four-wheel drive system and an independent suspension system. The whole vehicle features high reliability, high mobility and high flexibility.

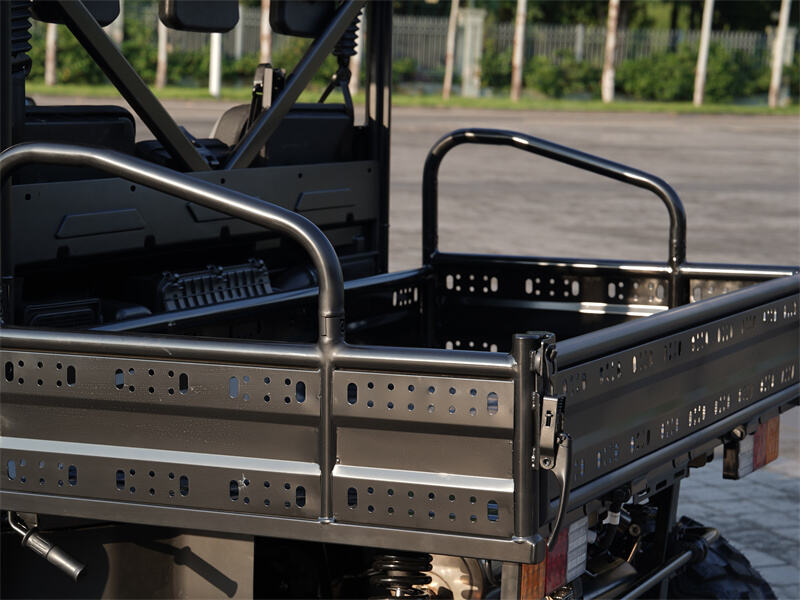

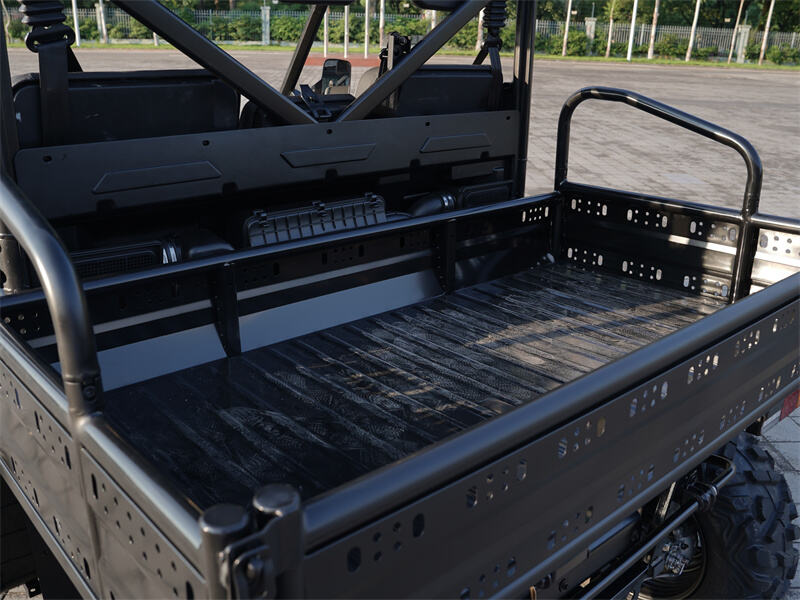

The large front cargo platform at the front ingeniously extends the loading space and is a powerful assistant for your rear cargo box. When the goods are fully loaded, it becomes your emergency solution, ensuring that every trip is worry-free.

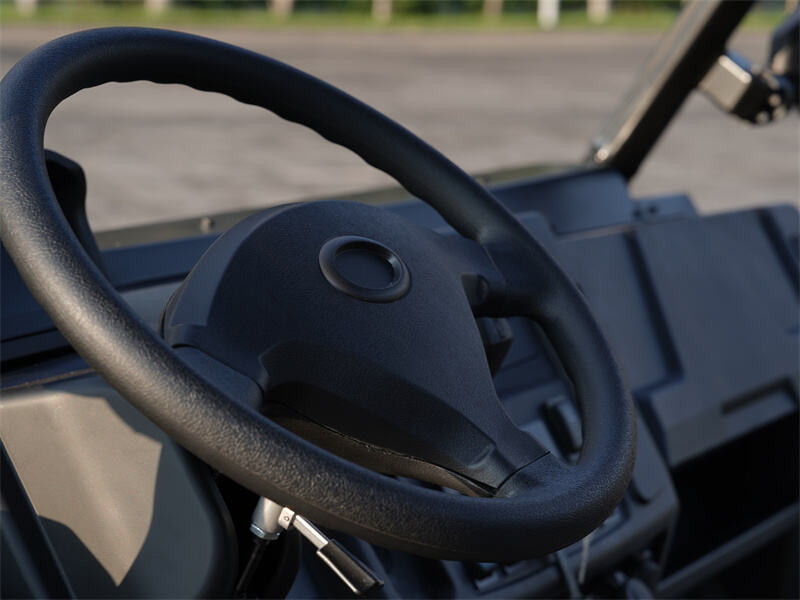

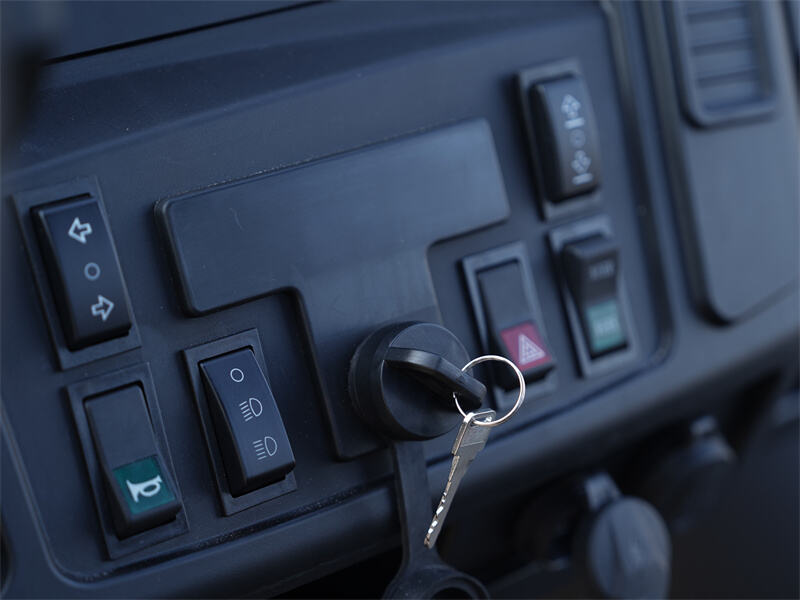

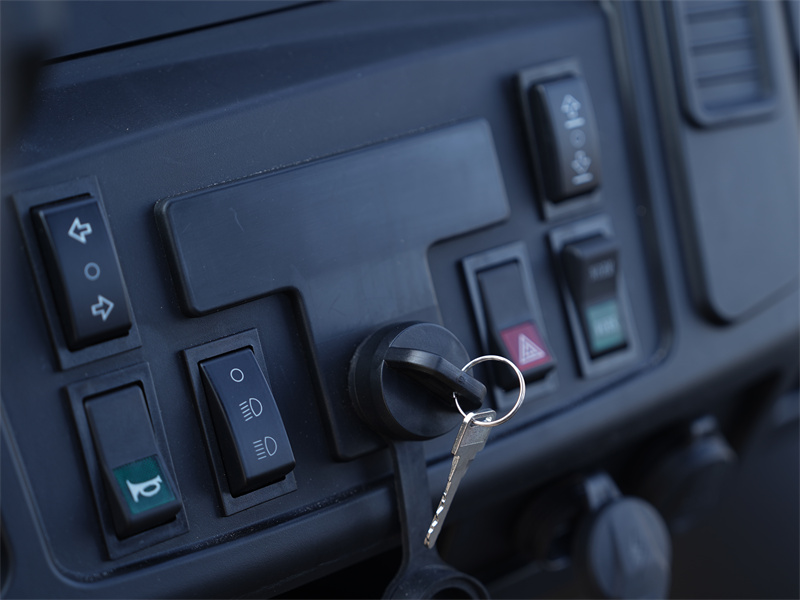

It integrates outstanding craftsmanship with humanized design. The operation console, exquisitely forged, features a scientific layout and precise touch, transforming complex operations into nothing. With reliable quality, we ensure your confident driving experience every time.

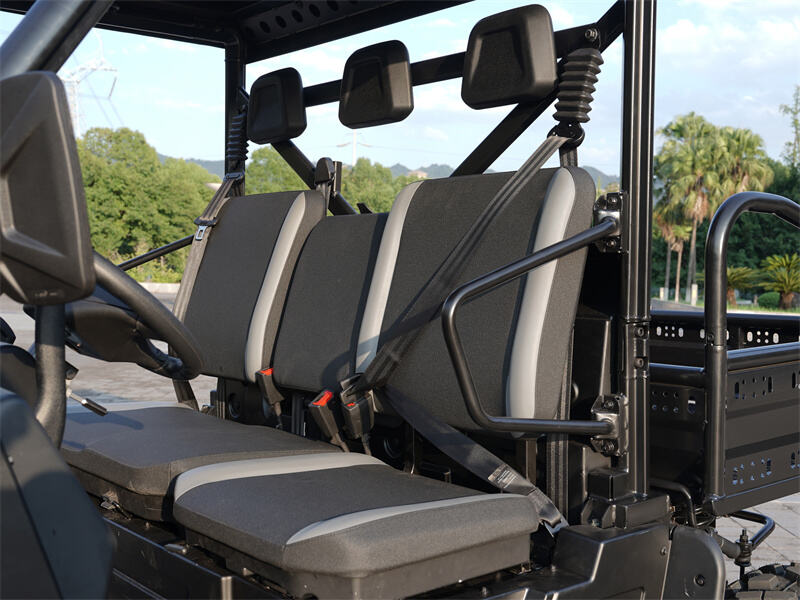

Abandon complexity and return to the essence. Made of natural and eco-friendly materials and with exquisite craftsmanship, humanistic care is infused into every detail. We believe that true quality lies in allowing the body to relax naturally and the mind to feel at peace.
The original high-torque stepless transmission system has the advantages of simple operation, large load ratio, flexibility and high reliability. Ffectively solve that problem that maneuverability and load can not be considered at the same time.
It is mainly used in farm transportation, reconnaissance and exploration, disaster relief, field exploration, camping companionship, mountain forest crossing, site transportation and other tasks.Fast mobility, personnel carrying and material transportation.It is an indispensable means of transportation in complex areas such as urban roadways, scenic spots, mountains, gullies, jungles, beaches, deserts and snowfields.It can be widely used in special tasks such as agriculture, forestry, animal husbandry, outdoor entertainment and emergency rescue.
|
Basic parameters
|
L × W × H: 3200 mm × 1780 mm × 1980 mm; |
|
Vehicle wheelbase: 2060 mm; |
|
|
Minimum ground clearance: 320 mm; |
|
|
Curb weight: 780 kg; |
|
|
Maximum bearing mass: 650 kg; |
|
|
Vehicle fuel tank capacity: 40 L; |
|
|
Maximum speed: 90km/H |
|
|
Dynamic parameters
|
Engine type: V-twin, 4-stroke, water-cooled, 8-valve, overhead camshaft; |
|
Displacement: 963 CC; |
|
|
Cylinder diameter × stroke: 91mm × 74mm × 2; |
|
|
Maximum horsepower/corresponding speed: 71hp/7000rpm; |
|
|
Maximum torque/corresponding speed: 74 N · m/6500rpm; |
|
|
Compression ratio: 10.6: 1. |
|
|
Fuel supply mode: EFI electronic fuel injection; |
|
|
Ignition control mode: ECU; |
|
|
Transmission type: CVT continuously variable transmission; |
|
|
Chassis parameters
|
Driving mode: two-wheel drive/four-wheel drive electronic control conversion; |
|
Braking mode: four-wheel hydraulic disc brake + manual parking at the rear wheel; |
|
|
Suspension type: front/rear double rocker arm independent suspension; |
|
|
Suspension stroke: front 190mm, rear 225mm |
|
|
Shock absorber type: front/rear variable stiffness coil spring + oil damping type; |
|
|
Rim specification: front 14 × 6.0 AT, rear 14 × 8.0 AT; |
|
|
Tire specification: front 27 × 9-8PR-AT, rear 27 × 11-8PR-AT. |
|
|
Optional configuration |
Optional equipment: electric winch, windshield, aluminum alloy rims, balustrade doors, civil engineering tools, etc; |
Relying on years of R & D experience and in-depth contact with customers in special industries, we have a deep understanding of all-terrain vehicles and adopt a high-standard R & D and production system.? Excellent performance, reliable and durable.
The product is widely used by domestic special customer groups, and has gone through many rounds according to the use feedback.
