Place of Origin: |
Chongqing |
Brand Name: |
JIALING |
Model Number: |
JL320A |
Certification: |
EU T3B |
Minimum Order Quantity: |
1 |
Delivery Time: |
60 days |
Payment Terms: |
30% advance payment and 70% final payment for delivery. |
Supply Ability: |
500 vehicles/month |

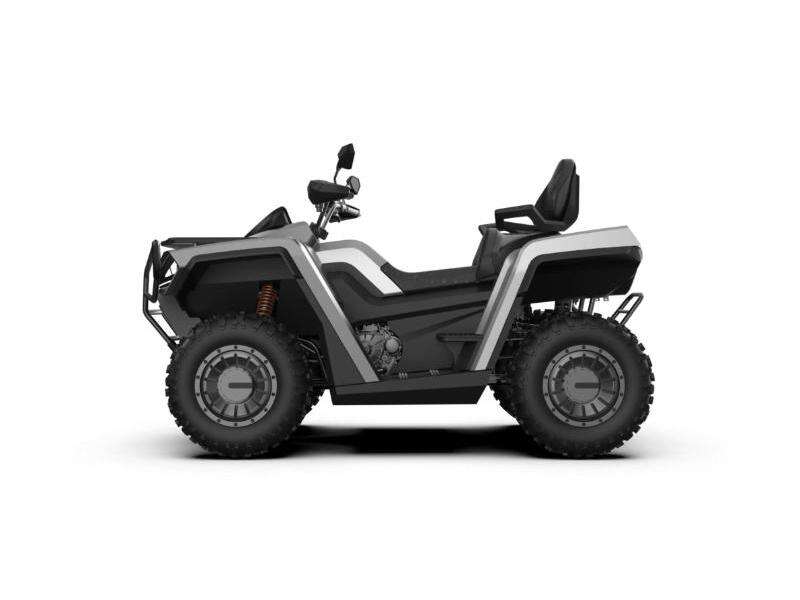

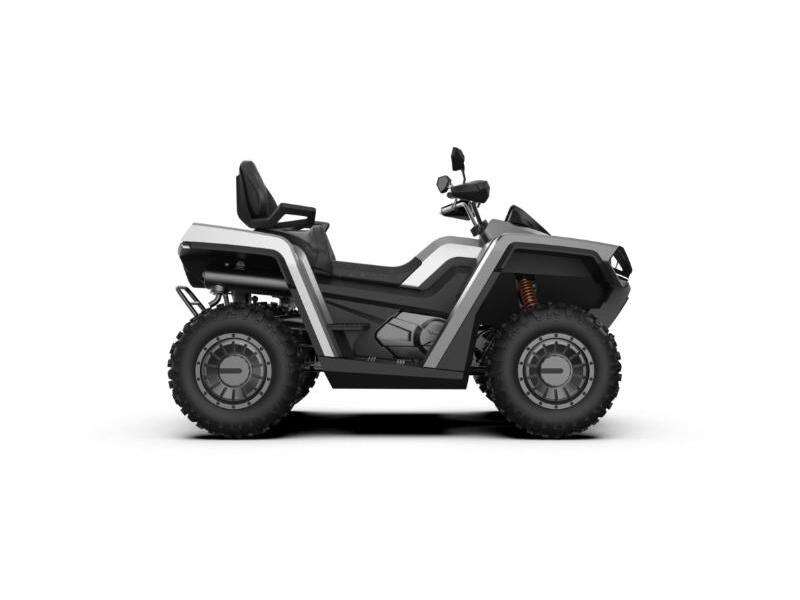

One key unlocks the unknown territory, carries the terrain perception system, and the all-terrain vehicle incarnates as an intelligent off-road partner.The steep slope descends slowly and the mud gets out of trouble like walking on the ground.High-definition navigation turns the wilderness into an immersive game map, and real-time data projection makes driving full of technological eggs.The roaring engine wakes up adrenaline, and the linear damping suspension precisely feeds back every inch of turbulence, crossing the jungle and surfing the dunes.Let every cross-country is the ultimate challenge of man-machine cooperation.Wisdom and interest in one, boundless vertical and horizontal, you and the ultimate off-road distance, only a Jialing all-terrain vehicle!
Power upgrade: when climbing on steep slopes, show strong climbing ability;
Energy efficiency upgrade: efficiently complete material distribution in rural transportation;
Obstacle climbing upgrade: experience speed and passion when traveling in the mountains;
Handling upgrade: When crossing the narrow road, the compact body can shuttle flexibly.
|
Basic parameters
|
L × W × H: 2235 mm × 1180 mm × 1390 mm; |
|
Vehicle wheelbase: 1480 ± 20 mm; |
|
|
Minimum ground clearance: 270 mm; |
|
|
Curb weight: 400 kg; |
|
|
Maximum bearing mass: 230 kg; |
|
|
Vehicle fuel tank capacity: 18 L; |
|
|
Maximum speed: 80km/H. |
|
|
Dynamic parameters 520
|
Engine type: single cylinder, water-cooled, four-stroke, SOHC, four-valve |
|
Displacement: 495 CC; |
|
|
Bore × stroke: 91 mm × 76.5 mm; |
|
|
Maximum horsepower/corresponding speed: 34HP/6750 rpm; |
|
|
Maximum torque/corresponding speed: 39 N · m/5750 rpm; |
|
|
Compression ratio: 10.3: 1 |
|
|
Fuel supply mode: electronic fuel injection |
|
|
Ignition control mode: CDI |
|
|
Transmission type: CVT infinitely variable transmission |
|
|
Dynamic parameters 620
|
Engine type: single cylinder, water-cooled, four-stroke, SOHC, four-valve |
|
Displacement: 580cc |
|
|
Bore × stroke: 91 × 89.2mm |
|
|
Maximum horsepower/corresponding speed: 45HP/6500rpm |
|
|
Maximum torque/corresponding speed: 51N.m/6000rpm |
|
|
Compression ratio: 10.68: 1 |
|
|
Fuel supply mode: electronic fuel injection |
|
|
Ignition control mode: CDI |
|
|
Transmission type: CVT infinitely variable transmission |
|
|
Chassis parameters
|
Driving mode: two-wheel drive/four-wheel drive electronic control conversion; |
|
Braking mode: four-wheel rim disc brake + rear wheel rim manual parking; |
|
|
Suspension type: double wishbone independent suspension; |
|
|
Shock absorber type: variable stiffness coil spring + oil damping type; |
|
|
Rim specification: front 12 × 6/rear 12 × 7.5; |
|
|
Tire specification: front 25 × 8-8PR-AT/rear 25 × 10-8PR-AT. |
|
|
Optional configuration |
Optional configuration: electric winch, aluminum alloy rim, electronic power steering; |
Relying on years of R & D experience and in-depth contact with customers in special industries, we have a deep understanding of all-terrain vehicles and adopt a high-standard R & D and production system.? Excellent performance, reliable and durable.
With a variety of intelligent configurations, the all-terrain vehicle becomes an intelligent off-road partner.
